A hydraulic mooring winch is a specialized maritime equipment designed for efficient and secure mooring operations in various marine environments. This type of mooring winch for ships utilizes hydraulic power to control the deployment and retrieval of mooring lines, which are essential for stabilizing and securing vessels at docks or berths. These winches are commonly used in ports, harbors, and offshore installations to facilitate the berthing and unberthing of vessels.
Types of Hydraulic Mooring Winch Based On Drum Configuration
The hydrualic mooring winch can be divided into single drum and double drum mooring winch based on drum configuration.

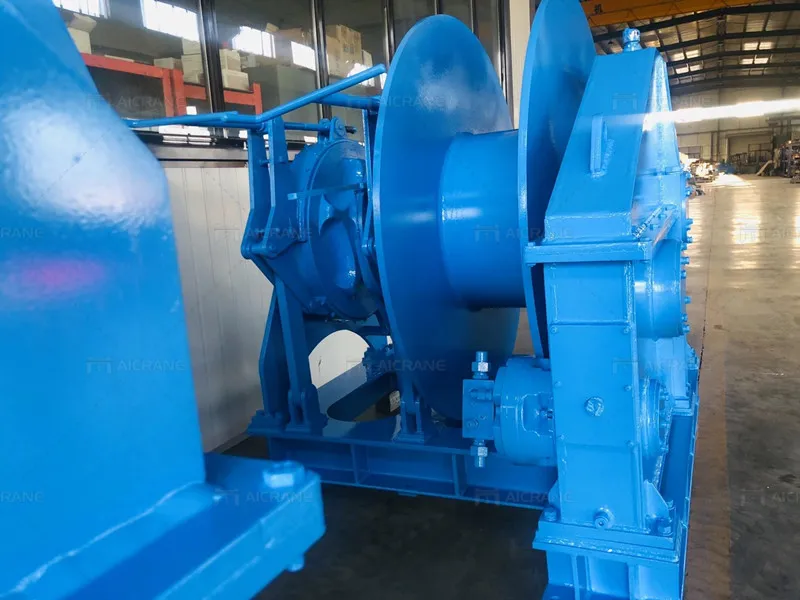

Single Drum Hydraulic Mooring Winch
A single drum hydraulic mooring winch features a single drum, powered by hydraulic systems, that winds and unwinds mooring lines to secure vessels during berthing or while stationed at docks. The hydraulic mechanism provides precise and reliable control over the deployment and retrieval of mooring lines, ensuring the safe and efficient maneuvering of ships.
This type of mooring winch is particularly suitable for applications where simplicity and straightforward operation are essential. It is commonly employed in ports, harbors, and offshore facilities to assist in the secure mooring of vessels. The single drum design allows for ease of installation and operation, making the single drum winch a practical choice for a range of marine environments.

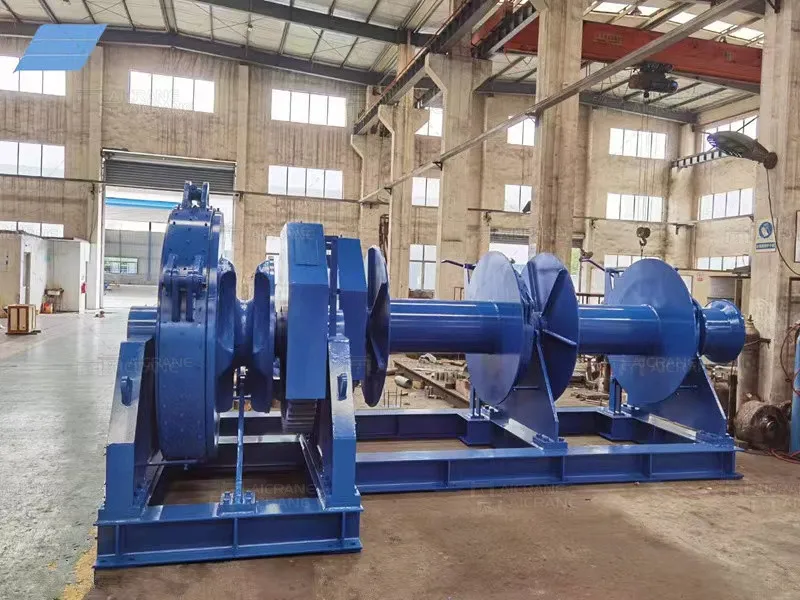

Double Drum Hydraulic Mooring Winch
Unlike its single drum counterpart, the double drum mooring winch features two drums, both powered by hydraulic systems, enabling the simultaneous handling of multiple mooring lines. This configuration allows for more intricate and precise maneuvers during vessel mooring and berthing.
The dual-drum design is advantageous in scenarios where additional control and flexibility are required. Operators can independently manage each drum of the double drum winch, accommodating different mooring line requirements for diverse vessels or adjusting tension levels during complex berthing situations. This type of mooring winch is often employed in larger ports and offshore installations where a higher degree of operational customization is necessary.
Both single drum and double drum hydraulic mooring winches contribute significantly to the efficiency and safety of maritime operations, providing reliable and controlled handling of mooring lines to secure vessels in various marine applications. The choice between these two types of winches depends on the specific operational requirements and the complexity of mooring tasks within a given maritime environment.
Customer Cases of Hydraulic Mooring Winch

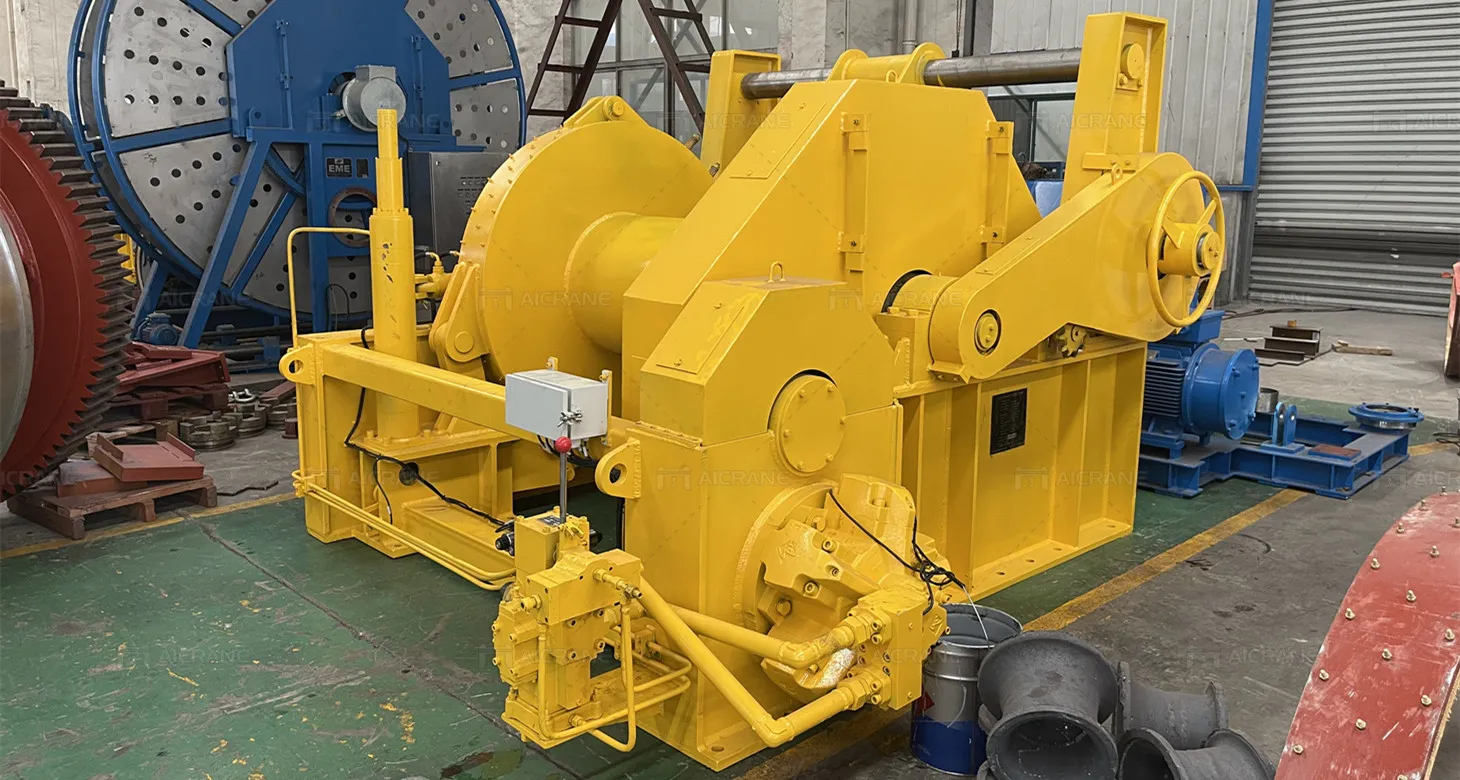

6 Sets of 30 Ton Hydraulic Mooring Winches For Vietnam
In our factory, we’ve successfully manufactured six sets of 30 ton hydraulic mooring winches for Vietnam. All of them have been dispatched to our client’s location in Vietnam. Our customer in Vietnam specifically sought marine winches tailored for mooring operations.
Upon gaining a thorough understanding of their operational requirements, we recommended our 30 ton hydraulic mooring winch equipped with a spooling device, ensuring it perfectly aligns with all specifications to fulfill their operational needs. As seasoned winch suppliers, we boast a professional design team and offer customized options to meet unique requirements.
Here are the specifications of these hydraulic mooring winches.
| Working load: 30T (1st layer) | Nominal speed: 12m/min (1st layer) |
| Drum capacity: φ38mm×1000m (totally 10 layers) | Holding load: 90T (static 1st layer) |
| Brake: Hydraulic operated | Clutch: Hydraulic operated |
| Dia. of warping head: φ400mm | winch hydraulic motor type: ITM31-4000 |
| Work pressure: ~13MPa | Working flow: ~460L/min |
Our hydraulic mooring winches have undergone many tests before delivery to ensure their smooth operation. The video of the hydraulic mooring winches in our factory has been sent to our customer to update the production process.

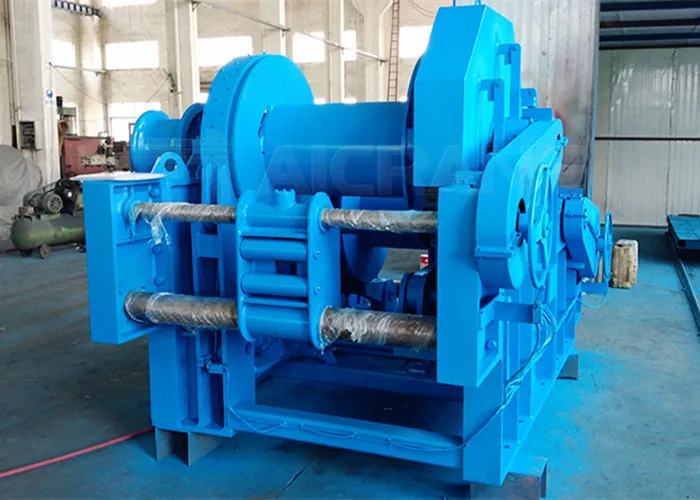

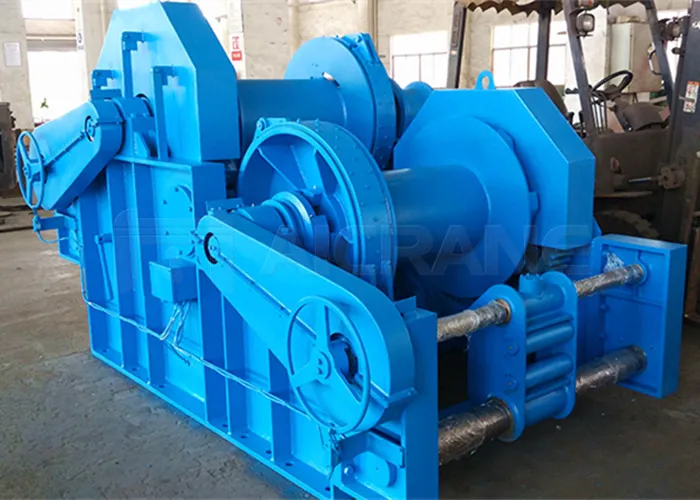

12 Ton Waterfall Hydraulic Mooring Winch in the Philipines
Aicrane’s 12 ton waterfall hydraulic winch has been successfully installed in the Manila Port of the Philippines. This specialized hydraulic winch, equipped with a double drum and powered by a hydraulic pump station, serves the crucial purpose of sea positioning.
The advantages embedded in the design and operation of the waterfall winch contribute to efficiency in our customer’s tasks. Whether it’s the precise control enabled by the hydraulic system or the versatility offered by the double drum setup, the winch ensures optimal performance in demanding maritime environments.
Aicrane has established a service center in the Philippines. This allows us to provide timely service to our clients, ensuring that the 12 ton waterfall winch for the Philipines is installed and operational successfully.
The installation process was facilitated by our skilled engineers stationed in the Philippines. Our customer expressed satisfaction not only with the performance of the waterfall winch but also with the professionalism and support provided by our team.

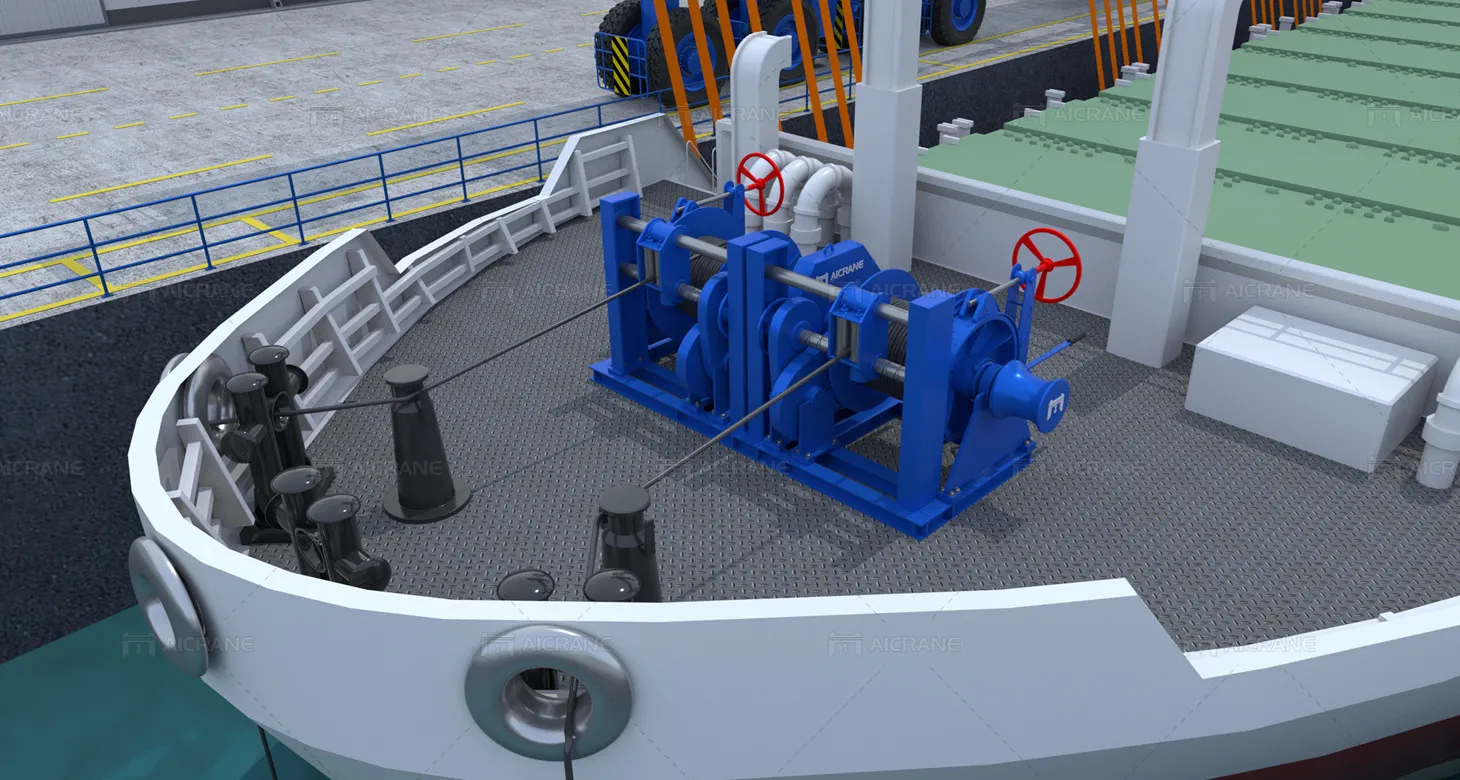

Multi-point Mooring and Multi-point Positioning Solution

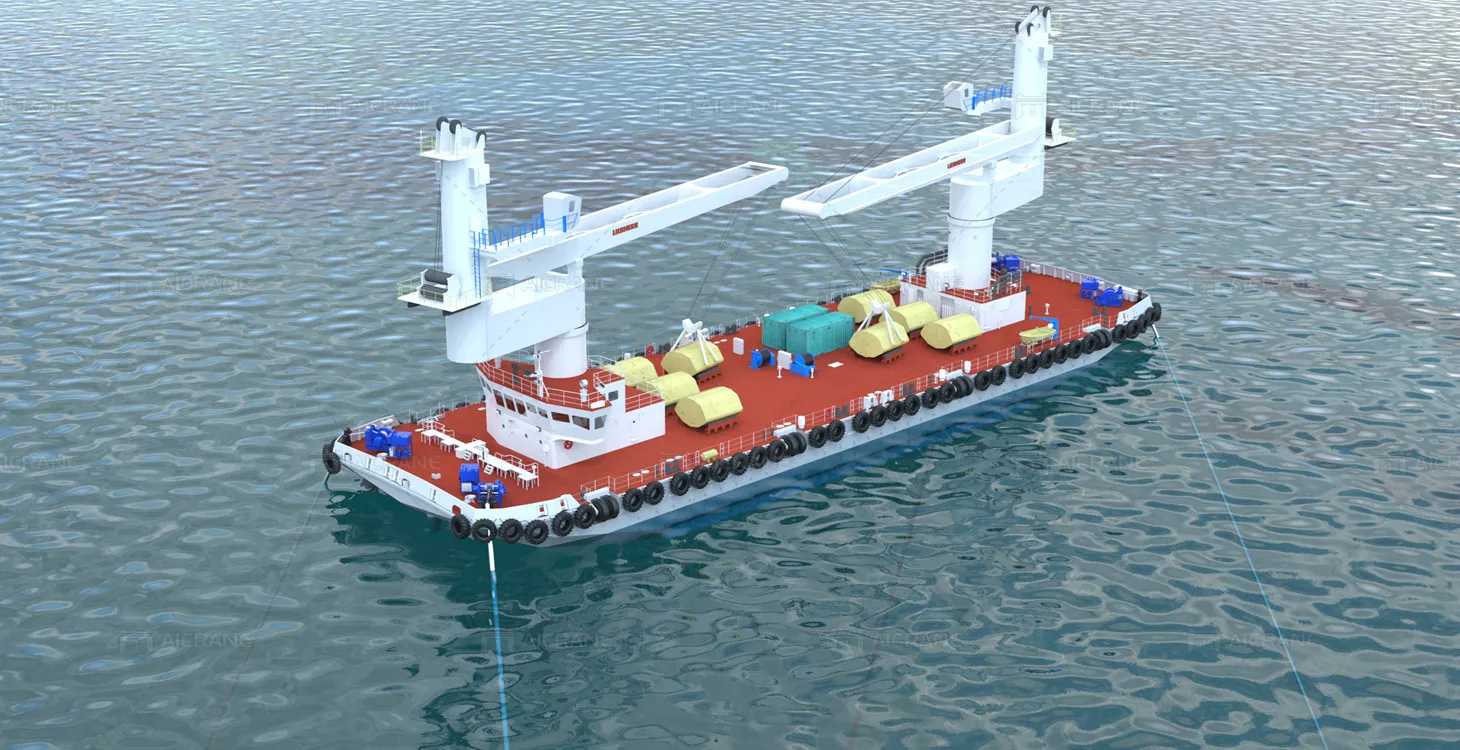

Multi-Point Mooring Solution
A multi-point mooring solution is an advanced maritime system designed to provide stability and secure positioning for vessels. Unlike traditional single-point mooring systems, which rely on a single anchor or point of connection, multi-point mooring involves the use of multiple anchor points to distribute the load and enhance stability.
Key Features
- Increased Stability:Multi-point mooring significantly improves stability by distributing the load across multiple anchor points, reducing the impact of environmental factors such as waves, currents, and wind.
- Enhanced Safety:The redundancy provided by multiple anchor points enhances the safety of moored structures by reducing the risk of failure in the event of anchor or line issues.
- Versatility:Multi-point mooring solutions can be customized to accommodate different vessel sizes, water depths, and environmental conditions, providing a versatile option for various maritime applications.
Multi-Point Positioning Solution
A multi-point positioning solution is a technology-driven system used to precisely control the position of vessels, rigs, or other floating structures in dynamic marine environments. This solution employs a combination of sensors, GPS, thrusters, and other control mechanisms to maintain a stable and accurate position.
Key Features
- Dynamic Positioning System (DPS):Utilizing advanced DPS technology, multi-point positioning solutions allow vessels or structures to maintain their position without traditional anchoring, providing flexibility in operations.
- Real-Time Monitoring:Continuous real-time monitoring of environmental conditions, vessel movements, and other relevant parameters ensures accurate positioning and allows for immediate adjustments.
- Autonomous Control:Some systems offer autonomous control features, enabling vessels or structures to automatically adjust their position based on predefined parameters and external conditions.
Aicrane provides both multi-point mooring solution and multi-point positioning solution. Both of them use combinations of hydraulic mooring winches. We provide 4 point, 6 point and 8point positioning solution. We can also design the solution based on your need. Feel free to contact us and get a free quote.
Main Components of Hydraulic Mooring Winch
A hydraulic mooring winch is a crucial component in maritime operations, designed for the secure mooring of vessels to docks or berths. Its main components work in tandem to provide controlled and reliable mooring capabilities. Here are the primary components of a hydraulic mooring winch:

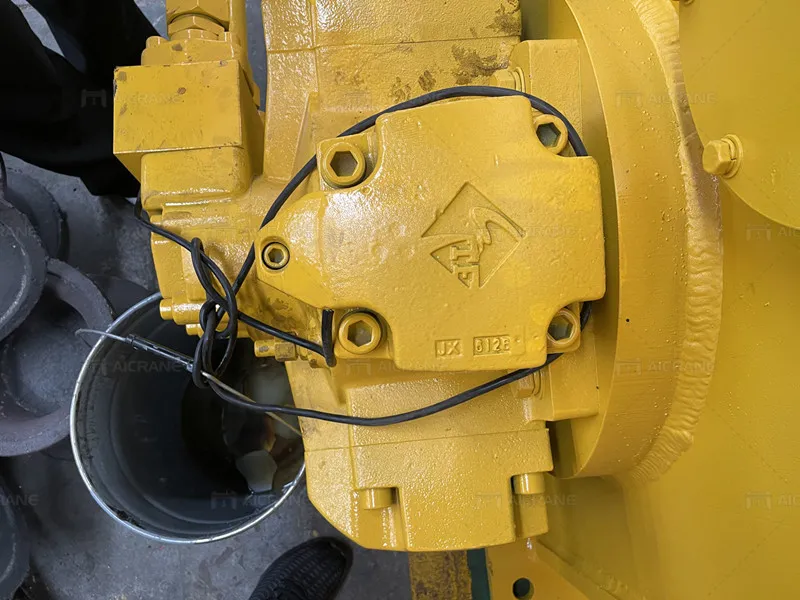

- Hydraulic Motor: The winch hydraulic motor is a key component responsible for converting hydraulic energy into mechanical energy. It drives the winch’s drum, enabling the winding and unwinding of mooring lines.
- Drum: The drum is a cylindrical component around which the mooring lines are wound. It plays a pivotal role in storing and releasing the ropes or cables used for securing vessels during mooring operations.

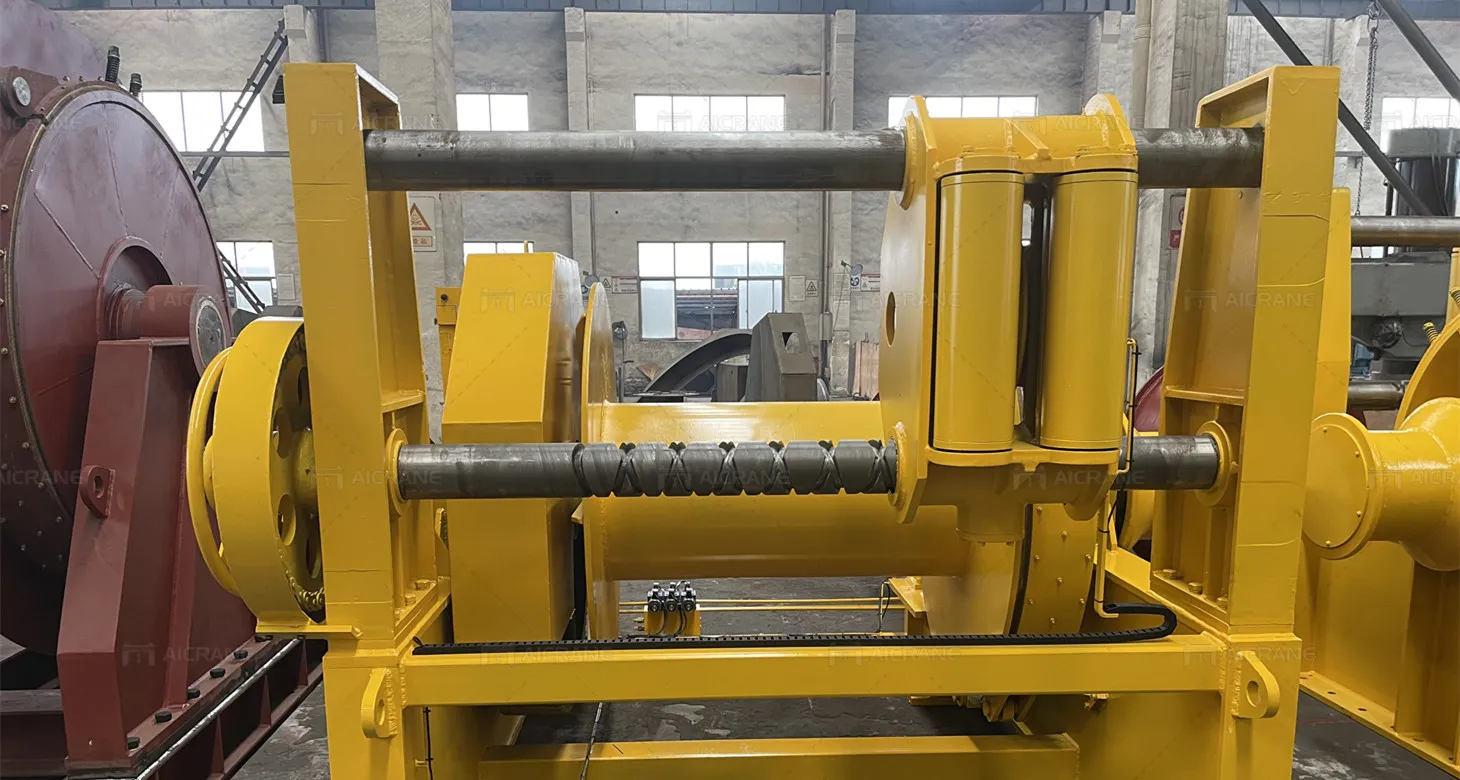

- Spooling Device: Some hydraulic mooring winches are equipped with a spooling device. This device ensures that the mooring lines are evenly and neatly wound on the drum, preventing tangles and ensuring efficient operation during both deployment and retrieval.

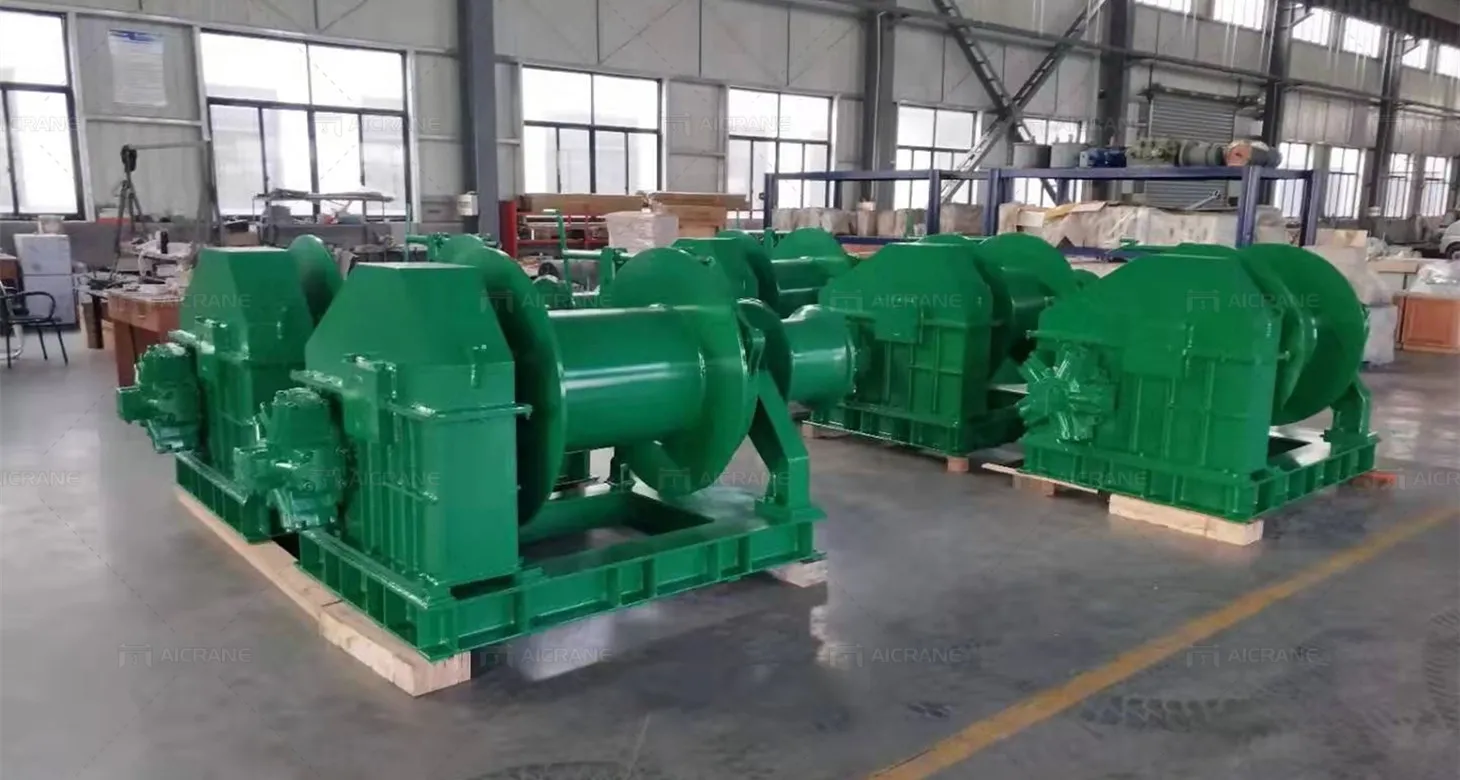

- Warping Head: The warping head is a component designed to guide the mooring lines onto the drum during winding. It helps in maintaining proper alignment and tension, contributing to the overall efficiency of the mooring process.
- Control System: The control system includes valves, levers, or other control mechanisms that enable the operator to manage the winch’s functions. Modern hydraulic mooring winches may feature advanced control systems with automation capabilities, enhancing precision and ease of operation.
- Power Unit: The power unit comprises a hydraulic pump and reservoir, supplying the hydraulic fluid necessary for the operation of the marine hydraulic motor. The power unit is a critical element ensuring the continuous and reliable functioning of the winch.
Understanding the interplay of these main components is crucial for the efficient and safe operation of a hydraulic mooring winch. Each component contributes to the overall performance, durability, and functionality of the winch, making it an indispensable tool in maritime applications.
Features of Hydraulic Mooring Winch
Hydraulic mooring winches are essential equipment in maritime applications, facilitating the secure berthing and mooring of vessels. These winches come with a range of features that contribute to their effectiveness and reliability in various marine operations. Here are the key features of hydraulic mooring marine winches:
- Hydraulic Power：The primary feature of hydraulic mooring winches is their utilization of hydraulic power. Hydraulic systems provide high torque and precise control, allowing for smooth and efficient handling of mooring lines.
- Variable Speed Control：Hydraulic mooring winches often come with variable speed control, allowing operators to adjust the speed of line deployment and retrieval based on the specific requirements of the mooring operation.
- Remote Control Options：Many modern hydraulic mooring winches come with remote control options, allowing operators to manage the winch from a safe and convenient distance. This enhances operational flexibility and safety.
- Compact Design： Hydraulic mooring winches are often designed with compact and robust structures, making them suitable for installation in various maritime environments. The compact design ensures easy integration into existing shipboard systems.
- Durability and Corrosion Resistance:Hydraulic mooring winches are typically constructed from durable materials and coatings to withstand the harsh marine environment. This includes corrosion-resistant components that enhance the winch’s longevity and performance.
These features collectively make hydraulic mooring winches versatile and reliable tools for the marine industry, contributing to efficient and safe mooring operations in various maritime settings.
