Gantry girders play a pivotal role in the structural framework of various lifting systems, providing essential support and stability for overhead cranes and gantry crane configurations. As critical components in material handling and industrial operations, gantry girders are engineered with precision to withstand heavy loads and ensure the safe and efficient movement of goods within diverse work environments. In this comprehensive exploration, we delve into the definition, design considerations, applications, and key features of gantry girders.
Definition and Basics
A gantry girder, also known as a crane girder or bridge girder, is a horizontal structure that spans the gap between two supporting columns or legs, forming the overhead framework for cranes and gantry crane systems. It serves as the primary load-bearing element that supports the crane’s trolley, hoist, and other components, allowing for the movement and positioning of loads in both indoor and outdoor settings.
Design Considerations
The design of gantry girders is a highly specialized process that takes into account various factors to ensure structural integrity, safety, and optimal performance. Several key design considerations include:
- Material Selection:Gantry girders are commonly constructed from steel due to its high strength, durability, and resistance to deformation. The choice of steel alloy and the incorporation of protective coatings are important considerations to enhance corrosion resistance and overall longevity.
- Cross-Sectional Shape:The cross-sectional shape of the girder influences its load-bearing capacity and resistance to bending. Common cross-sectional shapes include I-beams, box girders, and trusses, each offering specific advantages based on the application requirements.
- Span Length:The span length, or the distance between the supporting columns, is a critical parameter in gantry girder design. Longer spans may require additional support structures or modifications to maintain stability and prevent deflection.
- Connection Points:The connection points between the gantry girder and supporting columns are crucial for stability and load distribution. Welded or bolted connections are used, with welds undergoing rigorous inspections to ensure structural integrity.
- Dynamic Factors:Gantry girders must account for dynamic factors, such as the acceleration and deceleration of the crane’s movements. These factors affect the stress and strain experienced by the girder during operational cycles.
- Environmental Conditions:Consideration of the operational environment is essential. Gantry girders used in outdoor settings must withstand exposure to weather elements, temperature variations, and potential corrosive agents.
- Load Capacity: Gantry girders are designed to carry specific loads based on the intended application. The load capacity is influenced by factors such as the type of crane, the weight of the lifted materials, and the span between supporting columns. The double girder gantry crane usually has higher load capacity than single girder gantry crane.
Applications
Gantry girders find extensive applications across various industries, contributing to the efficiency of material handling and manufacturing processes. Some prominent applications include:
- Gantry Cranes:Gantry girders are integral components of gantry crane systems, providing the framework for the horizontal movement of the crane’s trolley and load. These cranes are commonly used in shipyards, construction sites, and manufacturing facilities for lifting and positioning heavy materials.
- Overhead Cranes:Overhead cranes, also known as bridge cranes, utilize gantry girders as the horizontal bridge spanning the working area. These cranes are employed in manufacturing, warehouses, and industrial facilities for precise and controlled lifting and movement of loads.
- Container Handling:In port facilities and container yards, gantry girders support the lifting mechanisms of container gantry cranes. These cranes are designed to handle standard shipping containers with efficiency, allowing for the seamless loading and unloading of cargo from ships.
- Steel Plants:Gantry girders play a crucial role in steel plants, supporting overhead cranes used for lifting and transporting heavy steel coils, beams, and other raw materials or finished products.
- Automotive Manufacturing:In automotive manufacturing plants, gantry girders are utilized for the installation and movement of large components, such as car bodies and engine blocks, along the production line.

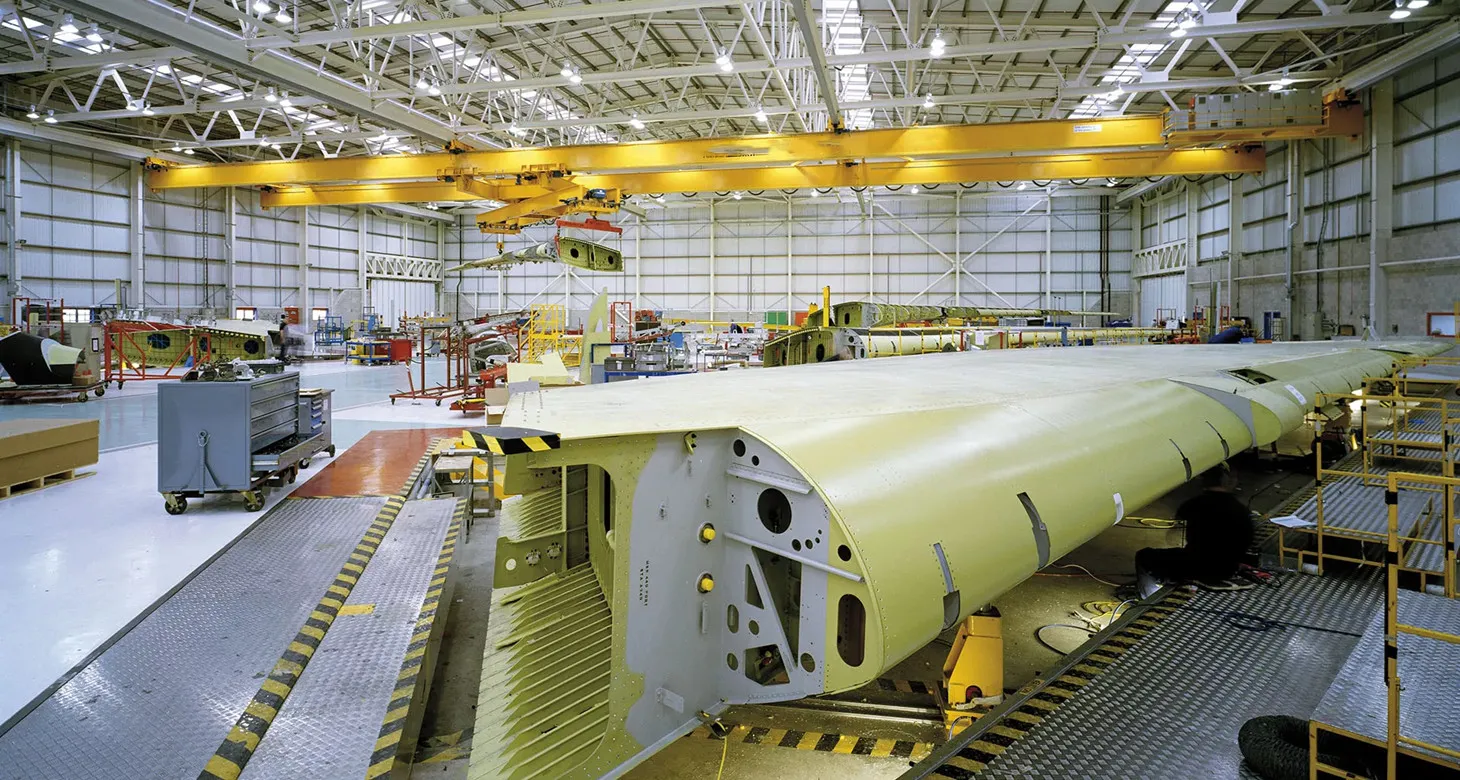

- Aerospace Industry:Gantry girders are employed in the aerospace industry for the assembly and transportation of large aircraft components. Their high load capacity and precision make them essential for aerospace manufacturing processes.
Key Features
Gantry girders possess several key features that contribute to their effectiveness in various industrial applications:
- High Load:Capacity Gantry girders are engineered to withstand substantial loads, making them suitable for lifting and moving heavy materials in industrial settings.
- Versatility:Their design allows for versatility in handling different types of cranes and loads. Gantry girders can be customized to accommodate specific requirements, such as different spans and lift capacities.
- Durability and Longevity:Constructed from robust materials, typically steel, gantry girders exhibit high durability and resistance to wear and tear. Proper maintenance can extend their operational life significantly.
- Precision and Stability:Gantry girders provide a stable and precise framework for crane operations. Their structural design minimizes deflection and ensures controlled movements during lifting and positioning tasks.
- Adaptability to Varied Environments: and positioning tasks. Whether indoors or outdoors, gantry girders are designed to function effectively in diverse environmental conditions. Protective coatings and materials selection contribute to their resilience against environmental factors. There are outdoor gantry and indoor gantry girder.
- Ease of Maintenance: and positioning tasks. Regular inspections and maintenance procedures are essential for the longevity of gantry girders. Their design often allows for ease of access to critical components, facilitating maintenance and minimizing downtime.
- Customization Options: and positioning tasks. Gantry girders can be customized based on specific application requirements. This includes adjustments to span length, load capacity, and the incorporation of features such as walkways, access platforms, or additional safety measures.
In the realm of material handling and industrial operations, gantry girders stand as indispensable components, forming the backbone of overhead cranes and industrial gantry crane systems. Their robust design, high load capacity, and adaptability to varied applications make them essential for the seamless movement of heavy loads in diverse industrial sectors.
As industries continue to evolve and demand more sophisticated lifting solutions, the innovation and precision in gantry girder design will likely play a pivotal role. From smart technologies to advanced materials, the future of gantry girders holds the promise of enhanced efficiency, safety, and adaptability in the dynamic landscape of material handling and industrial processes.
