An electric gantry crane uses an electrically powered hoist or trolley to lift and move heavy loads. It operates on a set of tracks or rails, usually mounted on the ground, and spans across a fixed distance with its structure supported by vertical legs. The electric power provides smooth and reliable operation, enhancing productivity and safety in material handling processes.
Hot Sale Model of Electric Gantry Crane
There are several hot sale electric gantry models in Aicrane. Here shows their basic parameters and information to help you choose the type of gantry crane you need.
AQ-MG Electric Gantry Crane
AQ-MG Electric Gantry Crane
The AQ-MG electric gantry is an A-type gantry crane. It has double girder and electric hoist. The load capacity ranges from 5 to 500 ton. The two legs of this double girder gantry crane on each side slightly bend toward each other.
AQ-MG European Electric Gantry Crane Parameters
Lifting capacity: 5-500t
Span length: 18-35m
Lifting height: 6-18m
Lifting speed: 1.5-11.5m/min
Trolley speed: 10-40.1m/min
Crane travelling speed: 16-50m/min
Working class: A3-A7
Customized service

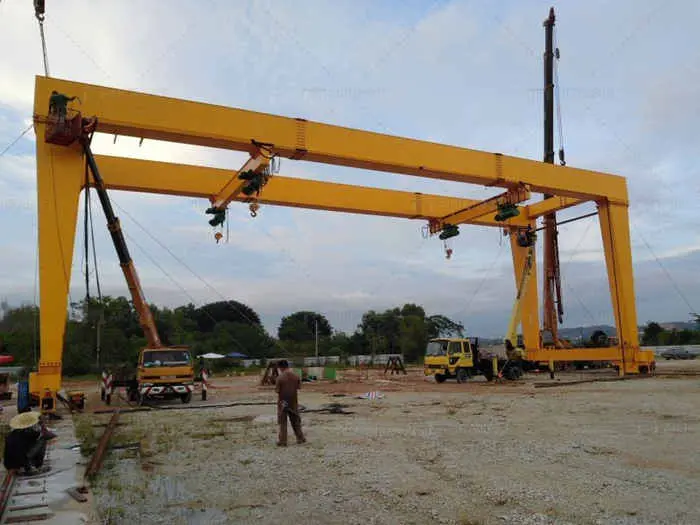

AQ-MDU Electric Gantry Crane
AQ-MDU Electric Gantry Crane
The AQ-MDU electric gantry is a U-type gantry crane. Its two legs on each side is parallel to each other. This provides large space between the legs for material to be transported. It covers the 15-25 ton gantry crane range.
AQ-MDU Electric Gantry Crane Parameters
Lifting capacity: 10-50t
Span length: 18-35m
Lifting height: 6-18m
Lifting speed: 5.9-13.3m/min
Trolley speed: 31.3-40.1m/min
Crane travelling speed: 40.1-44m/min
Working class: A5-A6
Customized service

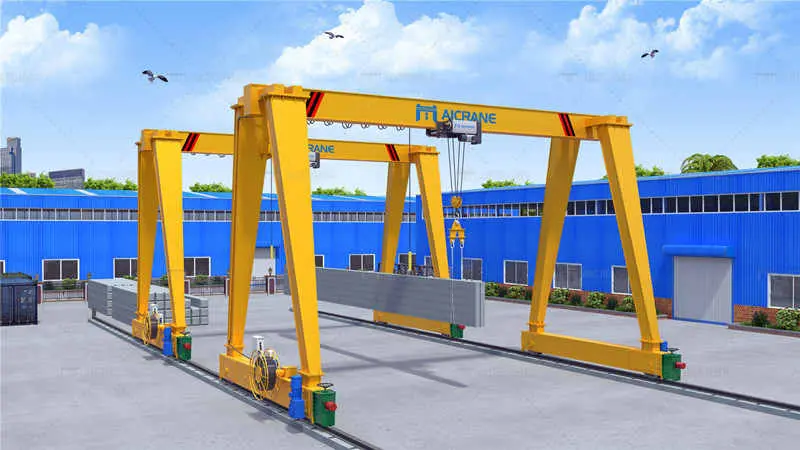

AQ-NMH Electric Gantry Crane
AQ-NMH Electric Gantry Crane
The AQ-NMH is single girder gantry crane with electric hoist. The load capacity is lower than the double girder gantry crane with electric hoist. This single girder gantry crane is more suitable for light to medium duty tasks.
AQ-MDU Electric Gantry Crane Parameters
Lifting capacity: 3.2-20t
Span length: 8-35m
Lifting height: 6-12m
Lifting speed: 0.66-5m/min
Trolley speed: 2-20m/min
Crane travelling speed: 3-30m/min
Working class: A5
Customized service

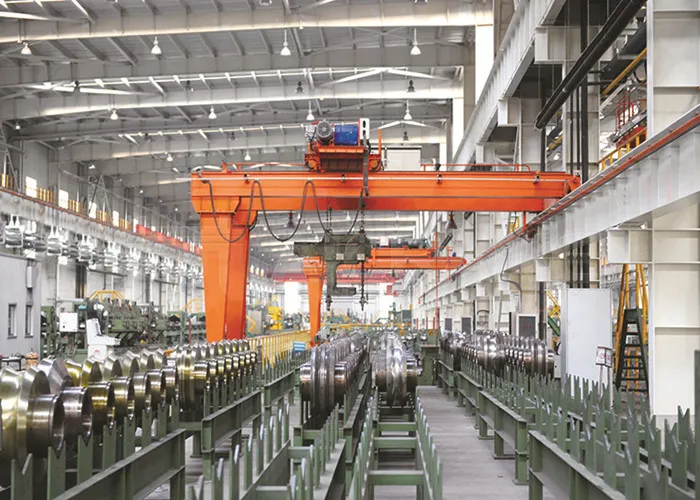

AQ-BMG Electric Gantry Crane
AQ-BMG Electric Gantry Crane
The AQ-BMG is double girder semi-gantry crane. It is similar to AQ-BMH which is a single girder gantry crane. The AQ-BMG semi-gantry crane has higher load capacity than the AQ-BMH due to the double girder structure.
AQ-BMG Electric Gantry Crane Parameters
Lifting capacity: 5-32t
Span length: 12-30m
Lifting height: 6-12m
Lifting speed: 6-11.5m/min
Trolley speed: 37-40.1m/min
Crane travelling speed: 37.7-40.1m/min
Working class: A3-A6
Customized service

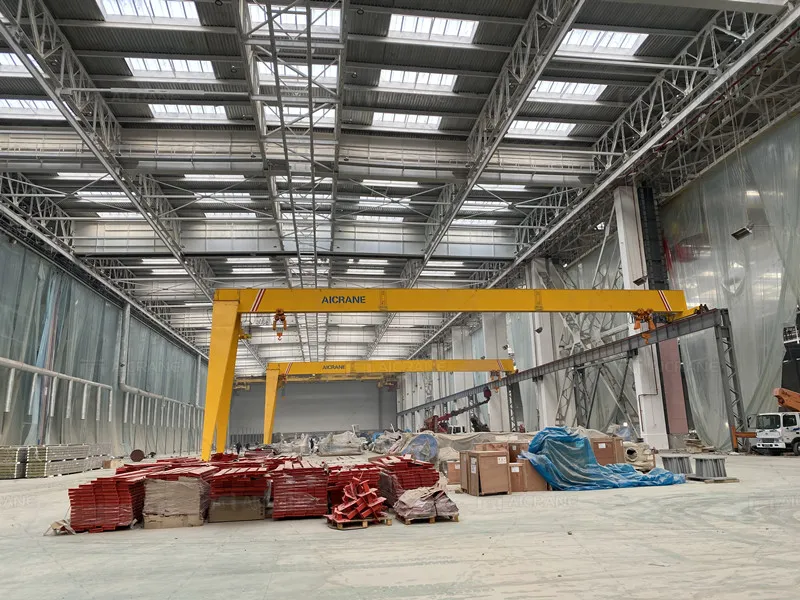

AQ-BMH Electric Gantry Crane
AQ-BMH Electric Gantry Crane
The AQ-BMH is a single girder semi-gantry crane which means it only has one side of leg. The other side need to be mounted on the existing structure like concrete or steel structure workshop. It can be installed inside and outside of the facility depends on the working condition.
AQ-BMH Electric Gantry Crane Parameters
Lifting capacity: 3-20t
Span length: 8-30m
Lifting height: 6-18m
Lifting speed:3.3-8m/min
Trolley speed: 14-20m/min
Crane travelling speed: 20-30m/min
Working class: A3-A4
Customized service
Customer Cases of Electric Gantry Crane
The gantry crane with electric hoist can have different load capacity and application in different industries. Here are three customer cases of electric hoist gantry crane.

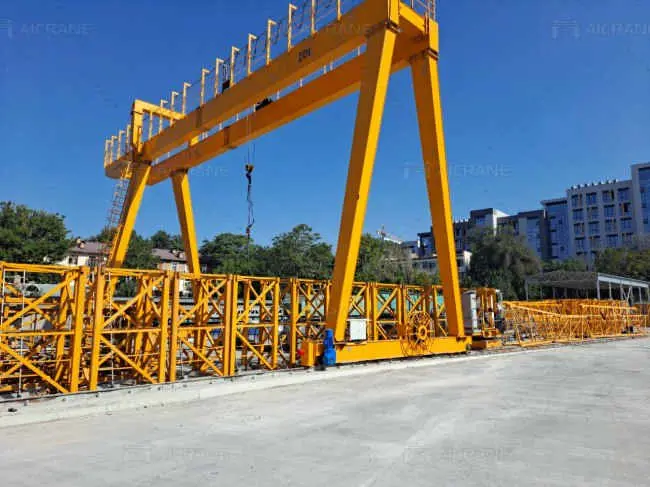

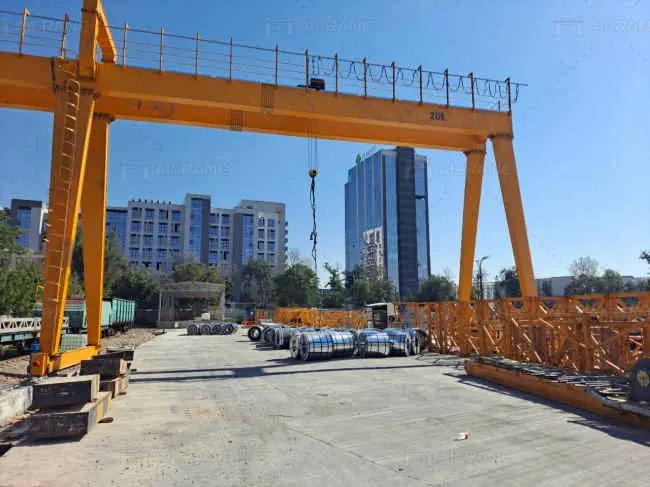

20 Ton Electric Trolley Gantry Crane in Uzbekistan
We supplied a 20 ton AQ-NMGH European standard double girder gantry crane for Uzbekistan to enhance the efficiency of loading and unloading trains along the railway. After swiftly arranging production post-contract, we maintained stringent quality control and kept the customer updated with weekly progress reports. The 20 ton electric gantry was meticulously tested, packed securely, and delivered on schedule.
With our guidance, the customer successfully installed the single cantilever gantry crane, which now operates efficiently, meeting all their heavy lifting needs and earning their satisfaction.
Load capacity: 20 ton
Span: 20 meter
Lifting height: 12 meter
Cantilever length: 7 meter
Work duty: A5
Control mode: Ground control + remote control

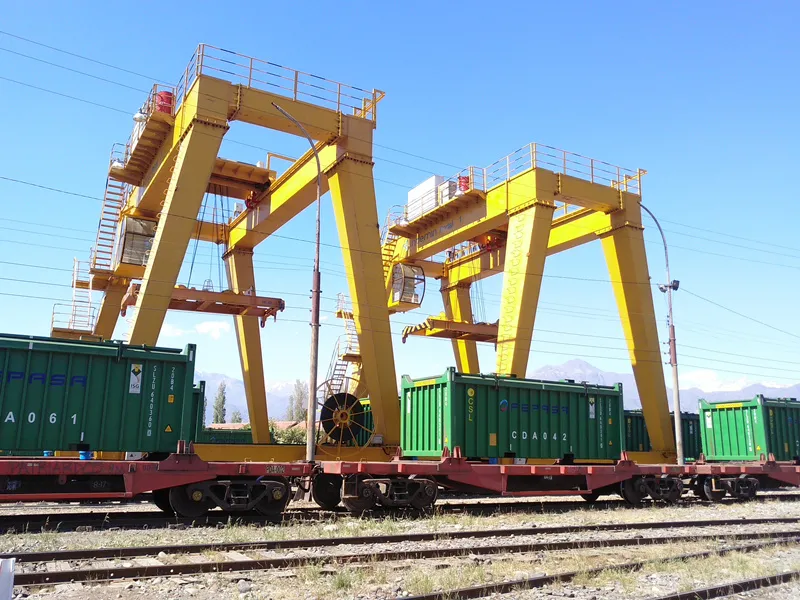

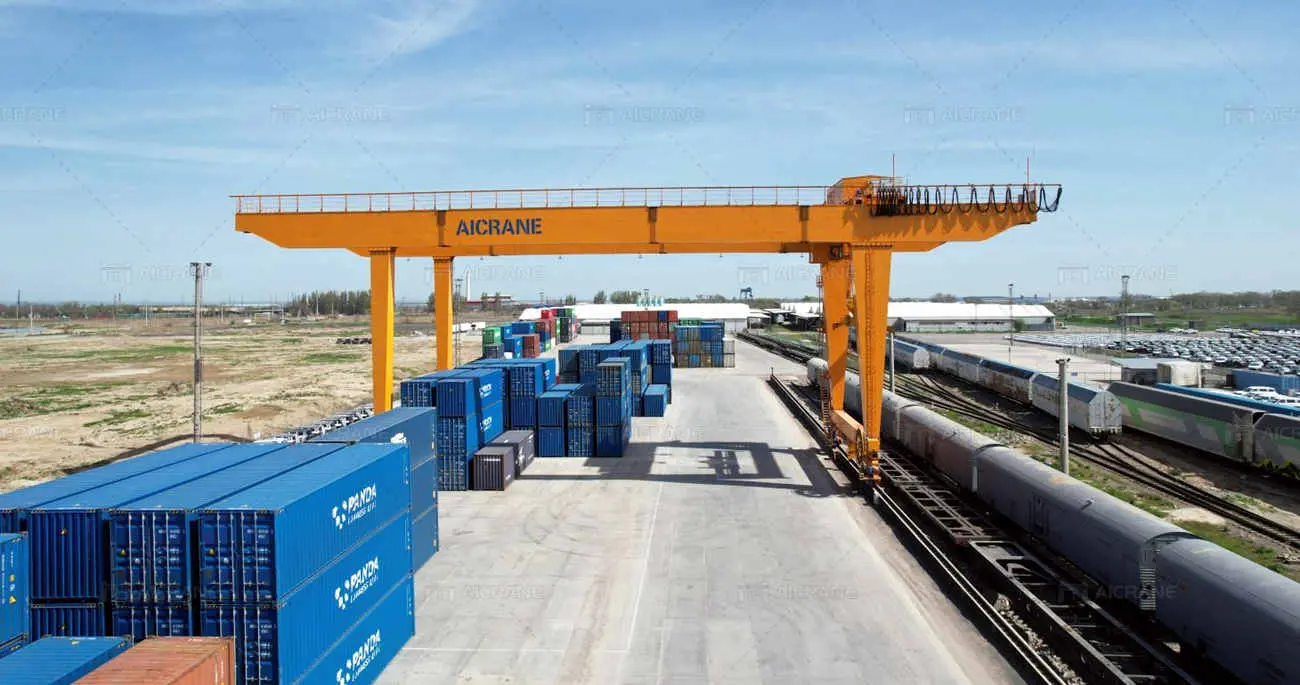

45 Ton Electric Gantry Crane for Container Handling in Kazakhstan
Aicrane exported a 45 ton rail-mounted gantry crane to Almaty, Kazakhstan, designed to enhance productivity and efficiency in container handling at a logistics station. With a span of 38 meters, a lifting height of 15 meters, and the capability to handle containers stacked 4+1 high, this crane is equipped with a container spreader and features effective cantilevers of 7 meters and 9 meters, making it ideal for seamlessly lifting 20-foot, 40-foot, and 45-foot containers.
This high-performance gantry electrical crane meets the demanding requirements of the logistics station. This container gantry crane ensures smooth and efficient container operations.

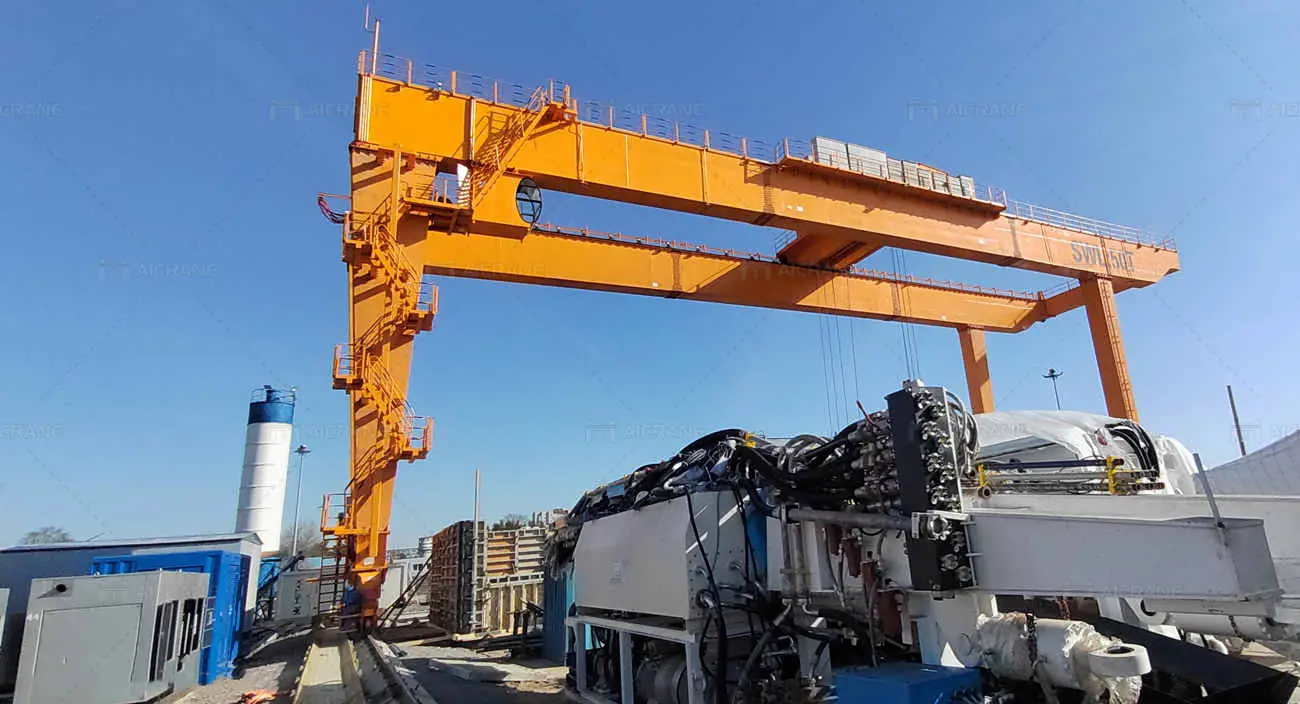

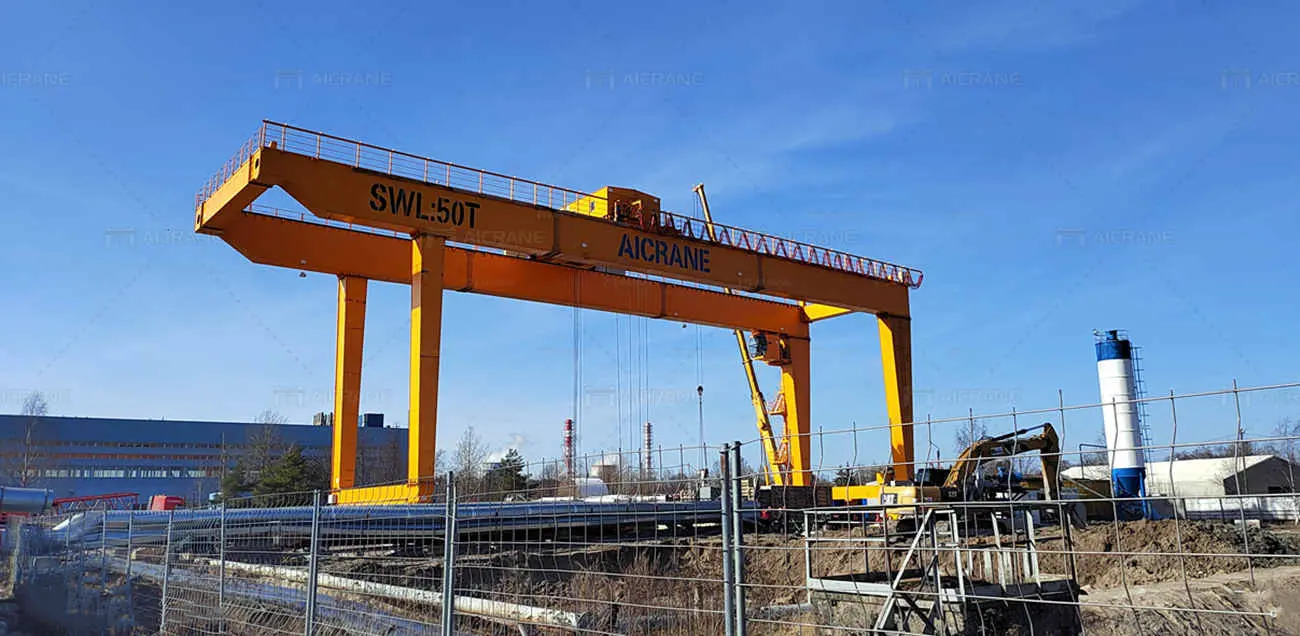

50 Ton Electric Gantry Crane for Tunnel Construction in Russia
Aicrane exported a 50 ton heavy duty gantry crane to Saint Petersburg, Russia, designed for lifting debris in tunnel construction. This 50 ton gantry crane has a single cantilever length of 5 meters. Equipped with a special spreader for debris handling, it ensures smooth and efficient operations.
After timely production and shipping, the 50 ton gantry crane with electric hoist was installed around the tunnel with guidance from our engineer, ensuring a smooth installation and load testing process. Now fully operational, the customer is highly satisfied and looks forward to future cooperation with us.
Lifting capacity: 50 tons
Span: 40 meters
Lifting height: 80 meters
Key Features & Advantages of Electric Gantry Crane
Electric gantry cranes are vital equipment in various industries due to their robust construction and efficient operation. Here’s a detailed overview of their key features and advantages:
01Electric Motor and Efficiency
High Efficiency: The gantry crane electric motor provides smooth and efficient lifting and movement, enabling fast operation and reducing handling time.
Variable Speed Control: Allows for precise control over lifting and lowering speeds, ensuring accurate load positioning and smooth operation.
02Strong Structural Design and Longevity
Durable Materials: Constructed from high-strength steel for durability and longevity, designed to withstand heavy use and harsh working conditions.
Robust Frame: Handles heavy loads efficiently, contributing to consistent performance with minimal downtime.
03Lifting Mechanism and Productivity
Hoist System: The electric heavy duty gantry crane equipped with electric hoists that can lift heavy loads with ease, enhancing productivity.
Trolley Mechanism: Moves along the beam, allowing horizontal movement of the load, increasing operational efficiency.
04Control System and Precision
Remote Control: Enables safe and efficient operation, reducing the risk of accidents and improving precision.
Automated Systems: Advanced models feature automated controls and safety mechanisms, ensuring accurate load positioning and reliable performance.
05Safety Features and Environmental Benefits
Overload Protection: Prevents the crane from lifting loads beyond its capacity, ensuring safe operation.
Emergency Stop: Allows for immediate shutdown in case of an emergency, enhancing safety.
Limit Switches: Prevent the gantry electrical crane from traveling beyond set limits, ensuring operational safety.
Zero Emissions: Electric gantrys produce no emissions, making them environmentally friendly.
Quiet Operation: Gantry crane electric motors generate less noise compared to combustion engines, reducing noise pollution.
Electric gantry cranes combine advanced technology with robust construction to offer efficient, safe, and versatile lifting solutions. Their ability to handle heavy loads with precision and control, coupled with their cost-effectiveness and environmental benefits, makes them an indispensable asset in various industrial applications. By leveraging their key features and advantages, businesses can significantly enhance their operational efficiency and productivity.
Applications of Electric Gantry Crane
Electric gantry cranes are versatile lifting devices widely used across various industries due to their ability to handle heavy loads efficiently and safely. Here are some of the primary applications of gantry electrical cranes:
- Construction Industry: Electric hoist gantry cranes are essential for lifting and transporting construction materials like steel beams, concrete blocks, and other heavy components. They help streamline the construction process, ensuring materials are moved quickly and safely around the site. In prefabrication yards, gantry crane with electric hoists are used to move large prefabricated components, such as walls and modules, facilitating their assembly and transportation to construction sites.
- Manufacturing and Fabrication: In manufacturing plants, gantry electrical cranes assist in moving heavy parts and assemblies along production lines These electric trolley gantry cranes are used in metal fabrication shops to handle large sheets of metal, heavy machinery parts, and finished products, ensuring precise and safe movement.
- Warehousing and Logistics: Mobile electric gantry cranes are used in warehouses to lift and move heavy pallets and other bulky items, aiding in efficient storage and retrieval processes. In logistics hubs, these mobile electric gantry cranes facilitate the loading and unloading of goods from trucks, ships, and trains, speeding up the supply chain process.

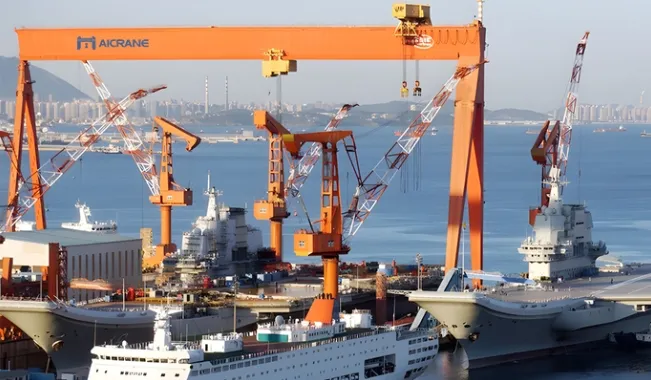

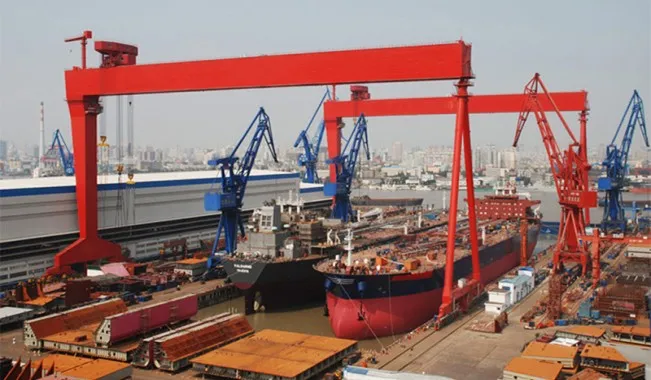

- Shipbuilding and Repair: Electric gantry plays a crucial role in shipyards, where they lift and position large ship components, such as hull sections. In dry docks, these electric hoist gantry cranes are used to handle heavy ship parts and materials, ensuring precise placement and assembly.

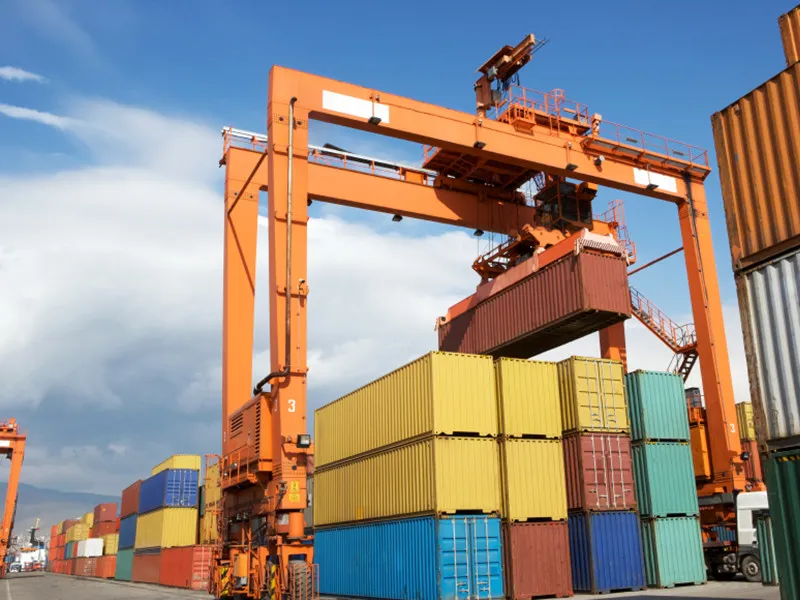

- Ports and Terminals: In ports and container terminals, electric trolley gantry cranes, often referred to as container cranes or rubber tyred gantry crane, are used to stack and move shipping containers, facilitating efficient cargo handling. These cranes also handle bulk cargo, such as coal, ore, and grain, by lifting and transporting large quantities of material from ships to storage areas.

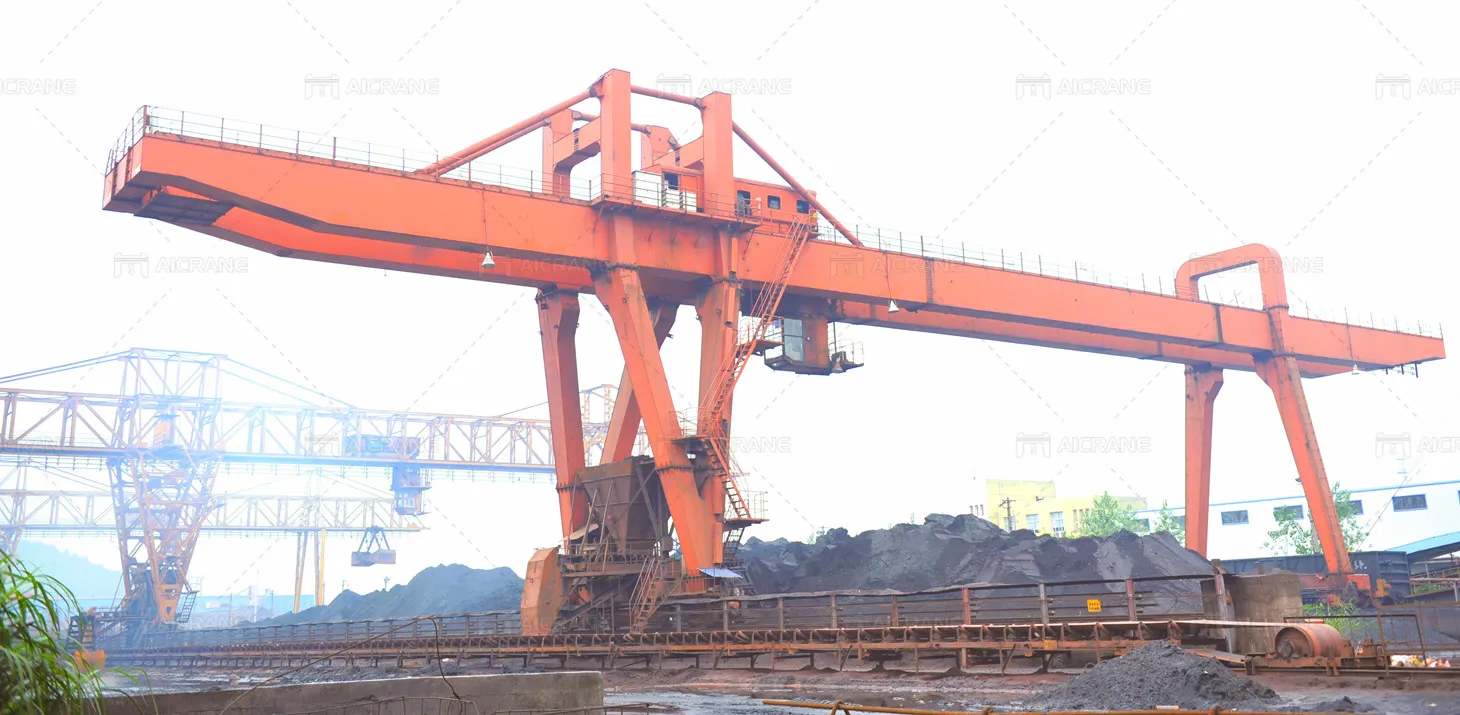

- Mining and Mineral Processing: In mining operations, electric trolley gantry cranes are used for the maintenance and repair of heavy mining equipment. These gantry electrical cranes also assist in moving extracted minerals and ores from mining sites to processing facilities.

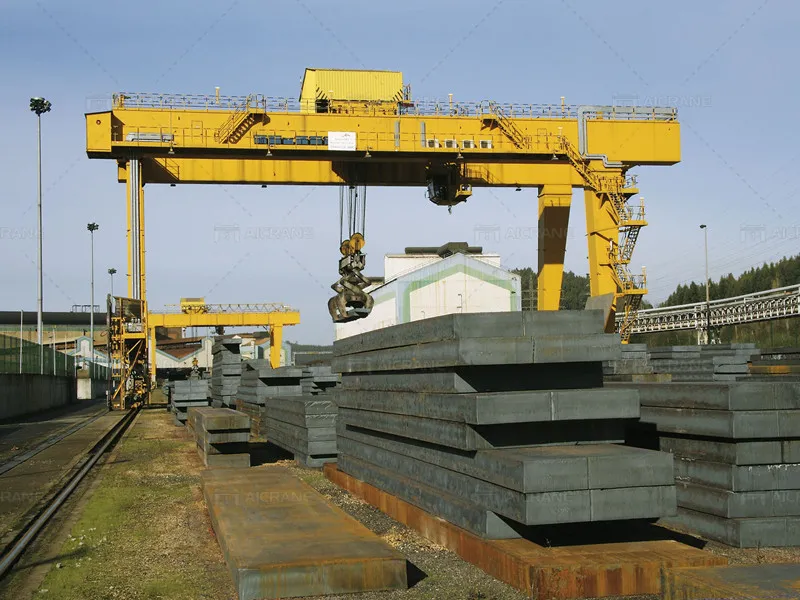

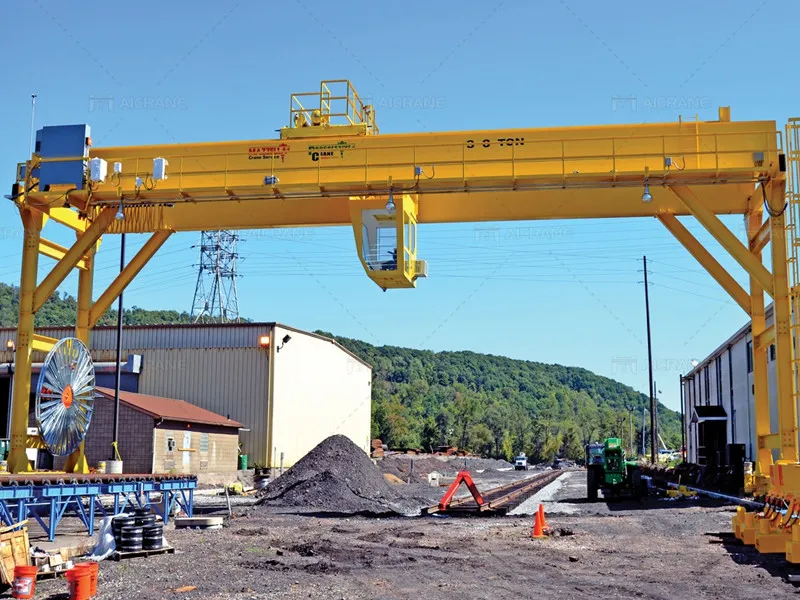

- Steel Mills and Foundries: Gantry electrical cranes are essential in steel mills and foundries for handling heavy steel slabs, billets, and coils, ensuring efficient transport and processing. In foundries, these cranes are used to lift and transport heavy molds and castings, facilitating the manufacturing process.
Electric gantry cranes are indispensable in numerous industries due to their versatility, lifting capacity, and ability to improve operational efficiency. From construction sites to manufacturing plants, ports to power plants, these cranes play a vital role in handling heavy loads safely and effectively, contributing to the productivity and safety of various industrial operations.
Reasons for Choosing Aicrane
When considering the purchase of an electric gantry, Aicrane stands out as a top choice for several compelling reasons:
01Quality and Reliability
Aicrane uses premium materials to ensure the durability and longevity of our cranes. Our company employs rigorous quality control measures throughout the manufacturing process to ensure that every gantry electrical crane meets high standards of performance and safety.
02Advanced Technology
Aicrane incorporates the latest technological advancements in our gantry crane with electric hoist designs, ensuring efficient and precise operations. The electric hoist gantry cranes are equipped with advanced control systems.
03Customization Options
Aicrane offers customized mobile electric gantry crane solutions to meet specific operational requirements, including different lifting capacities, spans, and lifting heights. Aicrane provides various types of spreaders and attachments tailored to specific industries and applications.
04Comprehensive Support
Aicrane’s team of experts provides comprehensive consultation to help customers select the right gantry crane with electric hoist for their needs. We offer professional installation services, ensuring safe and efficient use of the equipment. Aicrane provides robust after-sales support.
05Competitive Pricing
Aicrane offers high-quality cranes at competitive prices, providing excellent value for money. We ensures transparent pricing with no hidden costs, making it easier for customers to budget their projects.
06Global Reach
Aicrane has a strong international presence, with successful projects and satisfied customers around the world.
07Efficient Delivery
Aicrane ensures timely production and shipping of electric gantry cranes, adhering to agreed schedules and minimizing downtime for customers. The electric hoist gantry cranes and their components are securely packaged to prevent damage during transit, ensuring they arrive in excellent condition.
Choosing Aicrane for purchasing an electric gantry crane means opting for a blend of quality, advanced technology, customization, comprehensive support, and competitive pricing. With a strong reputation and a commitment to customer satisfaction, Aicrane ensures that customers receive a reliable and efficient lifting solution tailored to their specific needs.
